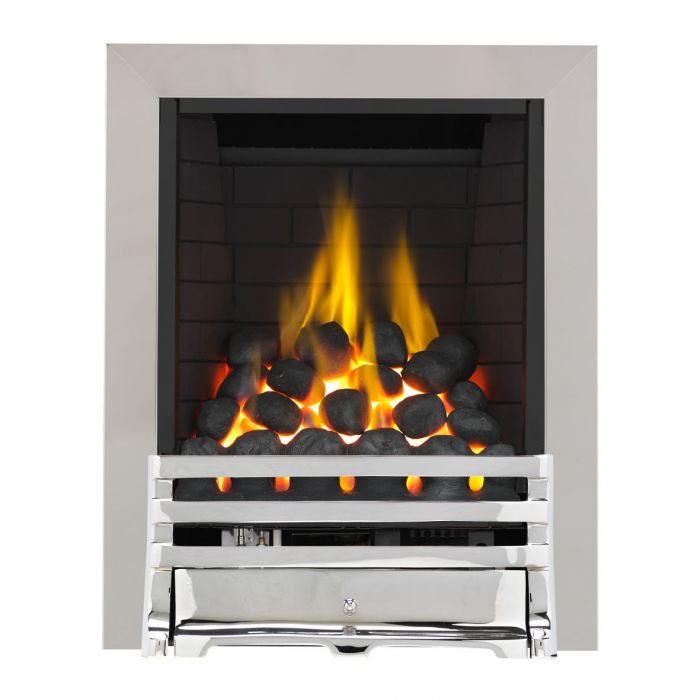

Whatley Full Depth Radiant Inset Gas Fire
- Full depth fuel bed for the ultimate flame picture
- Requires a min. 180mm (+ 20mm debris collection) fireplace depth
- Powerful heat output 3.8kW (Gross)
- Open fronted for increased realism
- OVERVIEW: Fantastic, versatile full depth gas fire that looks like a real open fire and will fit most chimney or flues
The Whatley is one of the best full depth radiant inset gas fires on the market. It is designed to homes with a pre-cast flue, pre-fabricated flue systems (class 1 or class 2 with min. 127mm or 5" diameter) or conventional class 1 brick chimney. This versatile fire is compatible with a standard 16" wide x 22" high fireplace opening (please refer to product specification - excludes low lintels) and requires a minimum depth of 180mm plus 20mm debris collection. The Whatley is an extremely popular all-rounder thanks to its affordable price, open fronted design and deep fuel bed with authentic flame picture.
The Whatley is available with coal, pebble or log effect fuel bed. It can be specified in Manual Control (Rotary), Manual (Fingerslide) or Remote Control.
The Grove fret is a very popular cast design with sophisticated styling. The elegant understated horizontal bars and subtle curved profile allows the Grove to equally suit contemporary, modern or traditional home decors. The Grove fret is available in: brass (solid brass), chrome (chrome plated brass), black (lightweight aluminium). It is designed to free stand in front of the fire and frame. The ashpan is a separate component and provides access to the controls (model dependent). The one-piece frame is held in position with magnets (supplied) and depending on the model is available in: brass effect, chrome effect or black.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
| Model Identifier | Conventional Full Depth Inset Radiant Heater Gas Category/Pressure = I2H(20) | ||||||
|---|---|---|---|---|---|---|---|
| Heat Input Gross (High) | 6.8kW | ||||||
| Heat Input Gross (Low) | 3.5kW | ||||||
| Heat Output Gross (High) | 3.8kW | ||||||
| Heat Output Gross (Low) | 1.9kW | ||||||
| Direct Heat Output | 3.5kW | ||||||
| Heat Type | Radiant Heat | ||||||
| |||||||
| |||||||
| |||||||
| Air Vent Required | Not Required | ||||||
| Manufacturer Guarantee | 3 Years | ||||||
| |||||||
| Installation Requirement | Gas Safe Registered Installer (Bord Gais - ROI) | ||||||
| Installation Information | As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. | ||||||
| Fuel Type | Natural Gas | ||||||
| Fire Type | Open Fronted | ||||||
| Installation Type | Inset | ||||||
| Engine Type | Full Depth Radiant | ||||||
| Width Outline A | 480mm | ||||||
| Height Outline B | 595mm | ||||||
| Depth Outline C | 180mm | ||||||
| Rear Width Min D1 | 245mm | ||||||
| Rear Width Max D2 | 375mm | ||||||
| Rear Height E | 545mm | ||||||
| Opening Width Min X1 | 375mm | ||||||
| Opening Width Max X2 | 450mm | ||||||
| Opening Height Min Y1 | 540mm | ||||||
| Opening Height Max Y2 | 575mm | ||||||
| Opening Depth Min Z | 200mm | ||||||
| Packaging Width | 575mm | ||||||
| Packaging Height | 670mm | ||||||
| Packaging Depth | 360mm | ||||||
| Packaging Weight | 11.5kg | ||||||
| Rebate Depth | 180mm | ||||||
