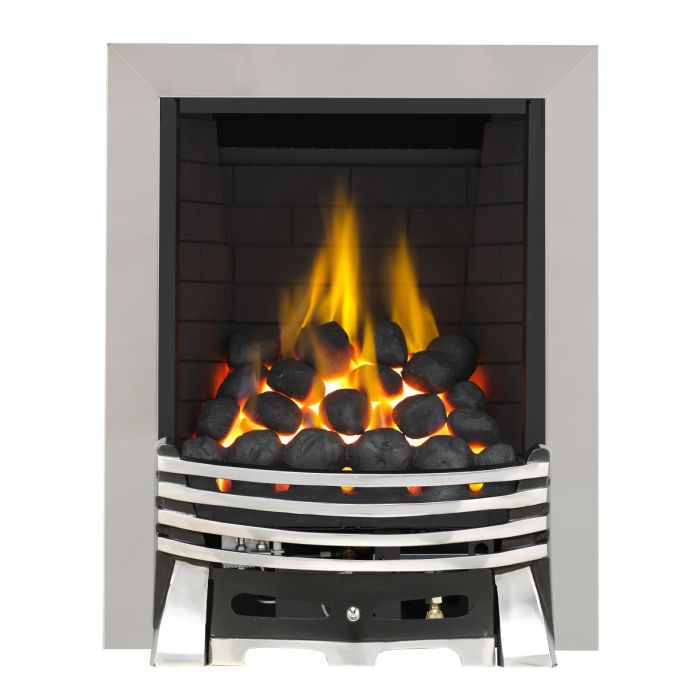

Whatley Elysee Full Depth Radiant Gas Fire

Item No:
SF1-220-000
From £209.00
  • 3.5kW Direct Output
  • Open Fronted Gas Fire
  • 3 Year Guarantee
From £209.00
Manuals/PDF's Details Specifications Reviews

 Whatley Full Depth Radiant Inset Gas Fire

  • Full depth fuel bed for the ultimate flame picture
  • Requires a min. 180mm (+ 20mm debris collection) fireplace depth
  • Powerful heat output 3.8kW (Gross)
  • Open fronted for increased realism
  • OVERVIEW: Fantastic, versatile full depth gas fire that looks like a real open fire and will fit most chimney or flues

The Whatley is one of the best full depth radiant inset gas fires on the market. It is designed to homes with a pre-cast flue, pre-fabricated flue systems (class 1 or class 2 with min. 127mm or 5" diameter) or conventional class 1 brick chimney. This versatile fire is compatible with a standard 16" wide x 22" high fireplace opening (please refer to product specification - excludes low lintels) and requires a minimum depth of 180mm plus 20mm debris collection. The Whatley is an extremely popular all-rounder thanks to its affordable price, open fronted design and deep fuel bed with authentic flame picture.

The Whatley is available with coal, pebble or log effect fuel bed. It can be specified in Manual Control (Rotary), Manual (Fingerslide) or Remote Control.

The Elysee fret is a modern cast design with horizontal curved bars. It has a slightly bowed profile with wider tapering feet detail which deliberately reduces the size of the ashpan making it a less prominent feature of this design. The ashpan is a separate component and provides access, if applicable, to the controls (model dependent). The Elysee fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The Elysee fret is designed to free stand in front of the fire and frame. The one-piece frame is held in position with magnets (supplied) and depending on the model is available in: brass effect, chrome effect or black.

Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.

More Information
Model Identifier Conventional Full Depth Inset Radiant Heater Gas Category/Pressure = I2H(20)
Heat Input Gross (High) 6.8kW
Heat Input Gross (Low) 3.5kW
Heat Output Gross (High) 3.8kW
Heat Output Gross (Low) 1.9kW
Direct Heat Output 3.5kW
Heat Type Radiant Heat
Chimney Flue Compatibility Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)
Control Ignition Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control), Battery Spark Ignition (Remote Control)
Control Location Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control), Handset (Remote Control)
Air Vent Required Not Required
Manufacturer Guarantee 3 Years
Safety Features Flame & Oxygen Monitoring Device
Installation Requirement Gas Safe Registered Installer (Bord Gais - ROI)
Installation Information As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.
Fuel Type Natural Gas
Fire Type Open Fronted
Installation Type Inset
Engine Type Full Depth Radiant
Width Outline A 480mm
Height Outline B 595mm
Depth Outline C 180mm
Rear Width Min D1 245mm
Rear Width Max D2 375mm
Rear Height E 545mm
Opening Width Min X1 375mm
Opening Width Max X2 450mm
Opening Height Min Y1 540mm
Opening Height Max Y2 575mm
Opening Depth Min Z 200mm
Packaging Width 575mm
Packaging Height 670mm
Packaging Depth 360mm
Packaging Weight 11.5kg
Rebate Depth 180mm
