Whatley Elysee Full Depth Radiant Gas Fire

Share
Item no: SF1-217-000
from £196.80
Whatley Elysee Full Depth Radiant Gas Fire Share
Item no: SF1-217-000
from

Regular Price: £246.00

Special Price £196.80

Full Depth Radiant ERP Product Data Sheet

Product Fiche

Supplier's name or trademark; Superior Fires

Model identifier; Conventional Full Depth Inset Radiant Heater Gas Category/Pressure = I2H(20)

Energy Efficiency Class of the model; F

Direct heat output; 3.5 kW

Indirect heat output; N.A.

Energy Efficiency Index; 49

Useful Energy Efficiency at nominal heat output; 57.7%

Useful Energy Efficiency at minimum load; 57.7%

Specific precautions that shall be taken when the local space heater is assembled, installed or maintained;

This appliance must be installed, commissioned and maintained by a competent person. Prior to
installation the competent person must ensure that the local distribution conditions (identification
of the type of gas and pressure) and adjustment of the appliance are compatible.

The competent person must refer to and comply with the specific instructions listed in the
Installation Manual before starting to install and commission the appliance.

  • 3.5kW Direct Output
  • Open Fronted Gas Fire
  • 3 Year Guarantee

* Required Fields

Regular Price: £246.00

Special Price £196.80

  • BUY DIRECT

    We design, manufacture and sell in the UK

  • BEST PRICE GUARANTEE

    We can't and won't be beaten on price!

  • FREE DELIVERY

    To UK Mainland orders over £249

  • 45-DAY RETURNS

    Don't like it? Send it back! Simple

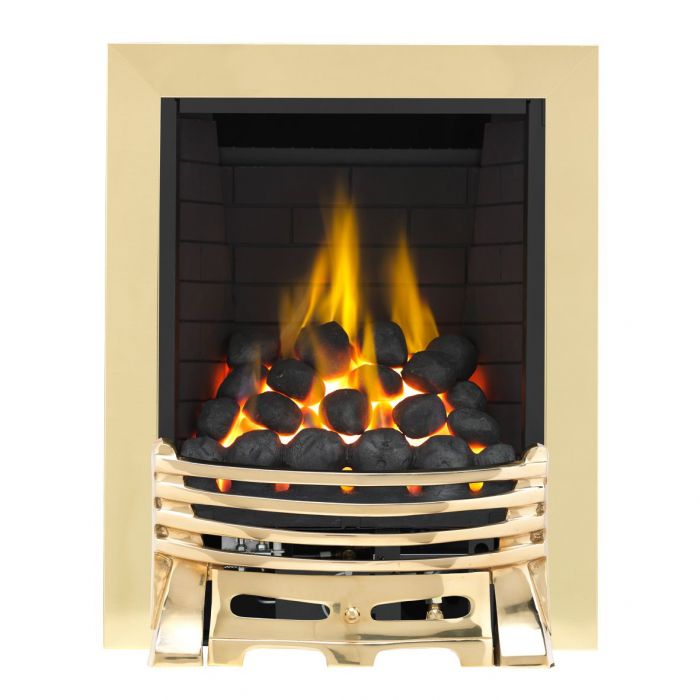

The Elysee fret is a modern cast design with horizontal curved bars. It has a slightly bowed profile with wider tapering feet detail which deliberately reduces the size of the ashpan making it a less prominent feature of this design. The ashpan is a separate component and provides access, if applicable, to the controls (model dependent). The Elysee fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The Elysee fret is designed to free stand in front of the fire and frame. The one-piece frame is held in position with magnets (supplied) and depending on the model is available in: brass effect, chrome effect or black.
Model IdentifierConventional Full Depth Inset Radiant Heater Gas Category/Pressure = I2H(20)
Heat Input Gross (High)6.8kW
Heat Input Gross (Low)3.5kW
Heat Output Gross (High)3.8kW
Heat Output Gross (Low)1.9kW
Direct Heat Output3.5kW
Heat TypeRadiant Heat
Chimney Flue CompatibilityPre-Cast (Minimum Size 12,500mm²)
Pre-Fabricated - Class 2 (127mm/5" Diameter)
Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)
Control IgnitionBattery-Free Piezo Spark Ignition (Manual - Rotary Control)
Battery Spark Ignition (Manual - Fingerslide Control)
Battery Spark Ignition (Remote Control)
Control LocationLow Level - Front - Behind Ash Pan (Manual - Rotary Control)
High Level - Right - Side (Manual - Fingerslide Control)
Handset (Remote Control)
Air Vent RequiredNot Required
Manufacturer Guarantee3 Years
Safety FeaturesFlame & Oxygen Monitoring Device
Installation RequirementGas Safe Registered Installer (Bord Gais - ROI)
Installation InformationAs with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.
Fuel TypeNatural Gas
Fire TypeOpen Fronted
Installation TypeInset
Engine TypeFull Depth Radiant
Width Outline A480mm
Height Outline B595mm
Depth Outline C180mm
Rear Width Min D1245mm
Rear Width Max D2375mm
Rear Height E545mm
Opening Width Min X1375mm
Opening Width Max X2450mm
Opening Height Min Y1540mm
Opening Height Max Y2575mm
Opening Depth Min Z200mm
Packaging Width575mm
Packaging Height670mm
Packaging Depth360mm
Packaging Weight11.5kg
Rebate Depth180mm
