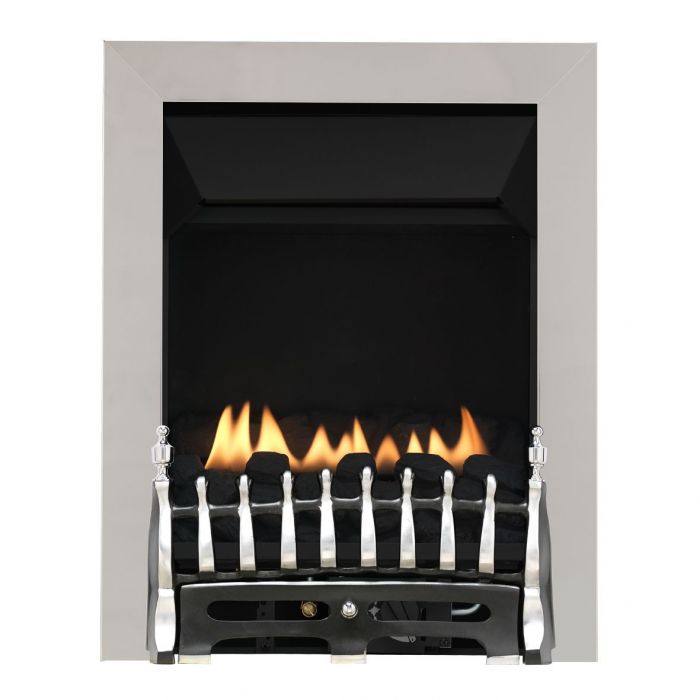

Westbury Blenheim Flueless Gas Fire
- 2.3kW Heat Output (Gross)
- Glass Fronted - High Efficiency
- 3 Year Guarantee
Westbury Flueless Inset Gas Fire
- No chimney or flue required - simplified installation
- No heat lost up the chimney
- 2.3kW heat output, designed for small to medium sized rooms
- Glass fronted with modern flame picture
- OVERVIEW: The perfect choice when you don't have a chimney or flue but want an inset gas fire with real gas flame
The Westbury flueless inset gas fire is based upon a traditional inset gas fire but due to its innovative catalytic flueless technology doesn't require a chimney or flue. It features all the benefits of flueless catalytic technology; 100% efficiency, reduced running costs, simple installation, realistic coal fuel bed and an ultra clean burning ribbon burner. Being flueless all the of the 2.3kW heat output is distributed into the room with no loss up the chimney unlike a conventional gas fire.
A 43mm spacer frame is fitted as standard to minimise fitting depth (92mm + 20mm clearance) however, for a true flat wall fix to a non-combustible wall/backpanel then the 43mm spacer can be removed and an optional 155mm spacer frame purchased.
The only considerations when installing this appliance are a minimum room size of 27m³, an accessible 8mm gas supply and 100cm² purpose provided ventilation.
This fire is available in Manual (Rotary) with coal fuel bed only. There is no requirement for mains power supply or battery for ignition.
The Blenheim fret is a classic traditional cast design with ornate vertical bars and delicate form. It features a bowed profile with two decorative finials and is designed to free stand in front of the fire and frame. The Blenheim fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The ashpan is a separate component and if applicable, provides access to the controls (model dependent). The one-piece frame is held in position with magnets (supplied) and is available in either: brass effect, chrome effect or black.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
|Model Identifier||PI27 Flueless Gas Fire Gas Category/Pressure = I2H(20)|
|Heat Input Gross (High)||2.3kW|
|Heat Input Gross (Low)||1.3kW|
|Heat Output Gross (High)||2.3kW|
|Heat Output Gross (Low)||1.3kW|
|Energy Efficiency Class||A|
|Direct Heat Output||2.1kW|
|Heat Type||Radiant & Convected Heat|
|Chimney Flue Compatibility||No Chimney or Flue Required|
|Control Ignition||Battery-Free Piezo Spark Ignition (Manual - Rotary Control)|
|Control Location||Low Level - Front - Behind Ash Pan (Manual - Rotary Control)|
|Air Vent Required||100cm² Air Vent|
|Manufacturer Guarantee||3 Years|
|Min. Room Size Required||27m³|
|Safety Features||Flame & Oxygen Monitoring Device|
|Installation Requirement||Gas Safe Registered Installer (Bord Gais - ROI)|
|Installation Information||As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.|
|Control Type||Manual - Rotary Control|
|Fuel Type||Natural Gas|
|Fire Type||Glass Fronted - High Efficiency|
|Width Outline A||495mm|
|Height Outline B||620mm|
|Depth Outline C||92mm|
|Rear Width Min D1||405mm|
|Rear Width Max D2||405mm|
|Rear Height E||555mm|
|Opening Width Min X1||410mm|
|Opening Width Max X2||425mm|
|Opening Height Min Y1||555mm|
|Opening Height Max Y2||570mm|
|Opening Depth Min Z||112mm|
