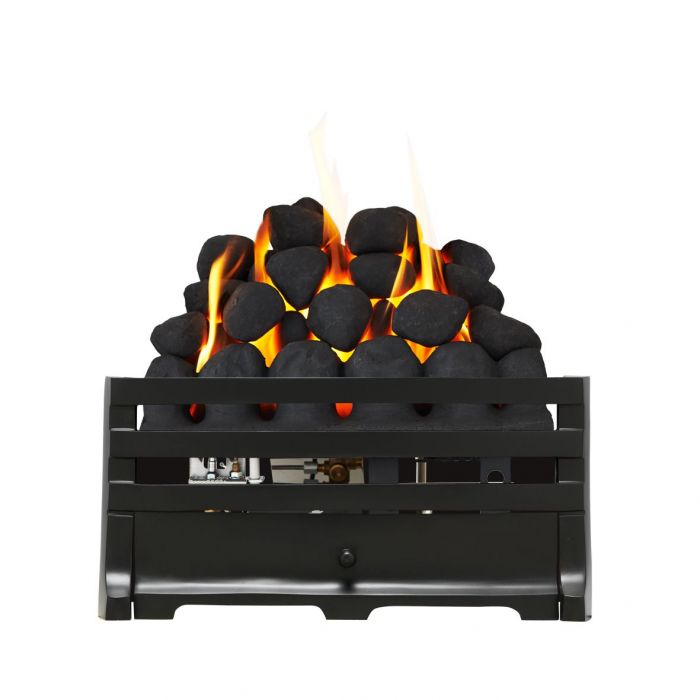

Sonora Grove DGF Gas Fire
Out of stock
Item No:
SF1-516-000
Gas Fire
This is a conventional open fronted gas fire which doesn’t require an vent as the heat input is less than 7.0kW. The gas fire is suitable for natural gas only and requires an 8mm pipe to supply the gas to the fire.
Class 2 - Pre-Fabricated Flue System
This fire is compatible with a Class 2 Pre-Fabricated Flue System with a minimum internal diameter of 5" (127mm) or greater.
Class 1 - Chimney / Flue System
This fire is compatible with a Class 1 conventional brick chimney or Pre-Fabricated Flue System with a minimum internal diameter of 7" (180mm) or greater.
Gas Safe Register
This fire must be installed and been serviced annually by a Gas Safe registered installer. For more information about Gas Safe please go to www.gassaferegister.co.uk
Remote Control
This fire is available in remote control.
This remote control system requires a permanent pilot meaning the pilot must be lit manually before the remote control is functional. The remote control can be used to control the operation of the fire from high to low.
NB: The valve is situated at the bottom of the fire behind the fret. The valve must be used to initally light the fire. It also acts as an override in the absence of the remote control handset.
Guarantee (3 Years)
This product has a 3 year manufacture guarantee. Please see the terms and conditions of your gurantee in the gurantee section.
Manual - Rotary Control
This fire is available in manual - rotary control. It incorporates a piezo spark ignition which doesn't require a battery and allows you to operate the fire from LOW to HIGH and turn the fire ON/OFF. The rotary control is located at the bottom of the fire, behind the decorative fret (ashpan).
- 2.4kW Heat Output (Gross)
- Taper Tray
Sonora DGF Inset Gas Fire
- Tapered inset gas tray
- Full depth fuel bed
- 2.4kW heat output (Gross)
- Ideal for Victorian Fireplaces converting from solid fuel
- OVERVIEW: Useful standalone tapered gas tray to be used with suitable fire backs or chair bricks
The Sonora is a full depth inset tapered burner tray designed to fit a standard chair brick (also commonly referred to as a fire back). Chair bricks are popular in older homes with a class 1 brick chimney, orginally used for burning solid fuel. The Sonora requires a min. 178mm / 7" pre-fabricated flue system or conventional brick chimney. It is classed as a Decorative Gas Fire (DGF) and is capable of providing up to 2.4kW heat output (Gross). The Sonora produces a lovely full depth flame picture however, as this is an open fronted fire placed within a chair brick (without a modern firebox).
The Sonora can be specified in Manual Control (Rotary) or Remote Control and is available with coal, pebble or log fuel bed.
The Grove fret is a very popular cast design with sophisticated styling. The elegant understated horizontal bars and subtle curved profile allows the Grove to equally suit contemporary, modern or traditional home decors. The Grove fret is available in: brass (solid brass), chrome (chrome plated brass), black (lightweight aluminium). It is designed to free stand in front of the fire. The ashpan is a separate component and provides access to the controls.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
| Heat Input Gross (High) | 6.8kW |
|---|---|
| Heat Input Gross (Low) | 3.5kW |
| Heat Output Gross (Low) | 1.2kW |
| Heat Type | Radiant Heat |
| Chimney Flue Compatibility | Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater) |
| Control Ignition | Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Remote Control) |
| Control Location | Low Level - Front - Behind Ash Pan (Manual - Rotary Control), Handset (Remote Control) |
| Air Vent Required | Not Required |
| Manufacturer Guarantee | 3 Years |
| Safety Features | Flame & Oxygen Monitoring Device |
| Installation Requirement | Gas Safe Registered Installer (Bord Gais - ROI) |
| Installation Information | As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. |
| Fuel Type | Natural Gas |
| Fire Type | Open Fronted |
| Installation Type | Inset |
| Engine Type | DGF |
| Width Outline A | 380mm |
| Height Outline B | 300mm |
| Depth Outline C | 240mm |
| Rear Width Min D1 | 240mm |
| Rear Width Max D2 | 360mm |
| Rear Height E | 240mm |
| Opening Width Min X1 | 405mm |
| Opening Width Max X2 | 440mm |
| Opening Height Min Y1 | 565mm |
| Opening Height Max Y2 | 575mm |
| Opening Depth Min Z | 220mm |
| Packaging Width | 575mm |
| Packaging Height | 340mm |
| Packaging Depth | 360mm |
| Packaging Weight | 10.0kg |
