Sonora Elegance DGF Gas Fire
- 2.4kW Heat Output (Gross)
- Taper Tray
Sonora DGF Inset Gas Fire
- Tapered inset gas tray
- Full depth fuel bed
- 2.4kW heat output (Gross)
- Ideal for Victorian Fireplaces converting from solid fuel
- OVERVIEW: Useful standalone tapered gas tray to be used with suitable fire backs or chair bricks
The Sonora is a full depth inset tapered burner tray designed to fit a standard chair brick (also commonly referred to as a fire back). Chair bricks are popular in older homes with a class 1 brick chimney, orginally used for burning solid fuel. The Sonora requires a min. 178mm / 7" pre-fabricated flue system or conventional brick chimney. It is classed as a Decorative Gas Fire (DGF) and is capable of providing up to 2.4kW heat output (Gross). The Sonora produces a lovely full depth flame picture however, as this is an open fronted fire placed within a chair brick (without a modern firebox).
The Sonora can be specified in Manual Control (Rotary) or Remote Control and is available with coal, pebble or log fuel bed.

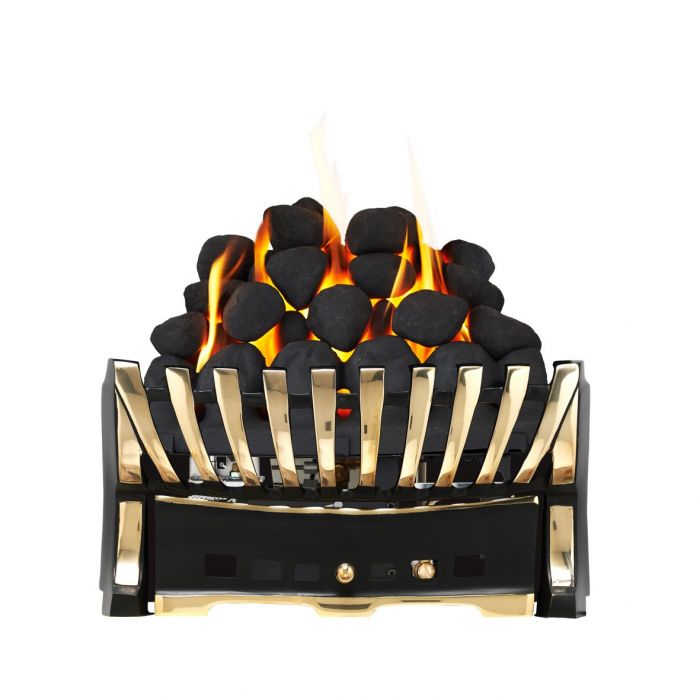

The Elegance fret is a traditional vertical cast design with a modern twist that imitates a classic solid fuel fire grate. It has a curved profile and is intended to stand in front of the fire. The ashpan is a separate component and provides access to the controls. The Elegance fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium).
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
|Heat Input Gross (High)||6.8kW|
|Heat Input Gross (Low)||3.5kW|
|Heat Output Gross (Low)||1.2kW|
|Heat Type||Radiant Heat|
|Chimney Flue Compatibility||Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)|
|Control Ignition||Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Remote Control)|
|Control Location||Low Level - Front - Behind Ash Pan (Manual - Rotary Control), Handset (Remote Control)|
|Air Vent Required||Not Required|
|Manufacturer Guarantee||3 Years|
|Safety Features||Flame & Oxygen Monitoring Device|
|Installation Requirement||Gas Safe Registered Installer (Bord Gais - ROI)|
|Installation Information||As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.|
|Fuel Type||Natural Gas|
|Fire Type||Open Fronted|
|Width Outline A||380mm|
|Height Outline B||300mm|
|Depth Outline C||240mm|
|Rear Width Min D1||240mm|
|Rear Width Max D2||360mm|
|Rear Height E||240mm|
|Opening Width Min X1||405mm|
|Opening Width Max X2||440mm|
|Opening Height Min Y1||565mm|
|Opening Height Max Y2||575mm|
|Opening Depth Min Z||220mm|
