Sonora DGF Gas Fire

In stock
Item No:
SF1-520-000
From £149.00
  • Full depth fuel bed
  • Taper Tray
From £149.00
Manuals/PDF's Details Specifications Reviews

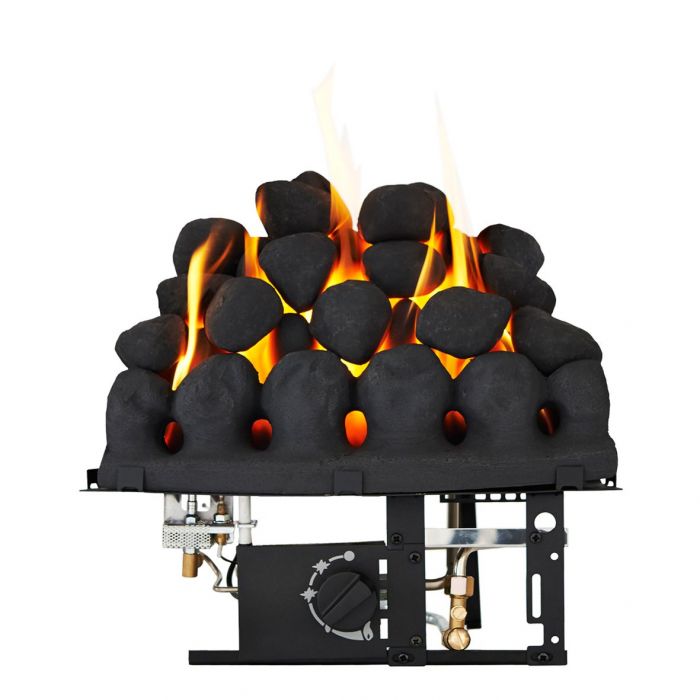

Sonora DGF Inset Gas Fire

  • Tapered inset gas tray
  • Full depth fuel bed
  • Ideal for Victorian Fireplaces converting from solid fuel
  • OVERVIEW: Useful standalone tapered gas tray to be used with suitable fire backs or chair bricks

The Sonora is a full depth inset tapered burner tray designed to fit a standard chair brick (also commonly referred to as a fire back). Chair bricks are popular in older homes with a class 1 brick chimney, orginally used for burning solid fuel. The Sonora requires a min. 178mm / 7" pre-fabricated flue system or conventional brick chimney. It is classed as a Decorative Gas Fire (DGF). The Sonora produces a lovely full depth flame picture however, as this is an open fronted fire placed within a chair brick (without a modern firebox).

The Sonora can be specified in Manual Control (Rotary) or Remote Control and is available with coal, pebble or log fuel bed.

Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.

This product is not suitable for primary heating

More Information
Heat Input Gross (High) 6.8kW
Heat Input Gross (Low) 3.5kW
Heat Type Radiant Heat
Chimney Flue Compatibility Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)
Control Ignition Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Remote Control)
Control Location Low Level - Front - Behind Ash Pan (Manual - Rotary Control), Handset (Remote Control)
Air Vent Required Not Required
Manufacturer Guarantee 3 Years
Safety Features Flame & Oxygen Monitoring Device
Installation Requirement Gas Safe Registered Installer (Bord Gais - ROI)
Installation Information As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.
Fuel Type Natural Gas
Fire Type Open Fronted
Installation Type Inset
Engine Type DGF
Width Outline A 380mm
Height Outline B 300mm
Depth Outline C 240mm
Rear Width Min D1 240mm
Rear Width Max D2 360mm
Rear Height E 240mm
Opening Width Min X1 405mm
Opening Width Max X2 440mm
Opening Height Min Y1 565mm
Opening Height Max Y2 575mm
Opening Depth Min Z 220mm
Packaging Width 575mm
Packaging Height 340mm
Packaging Depth 360mm
Packaging Weight 10.0kg
