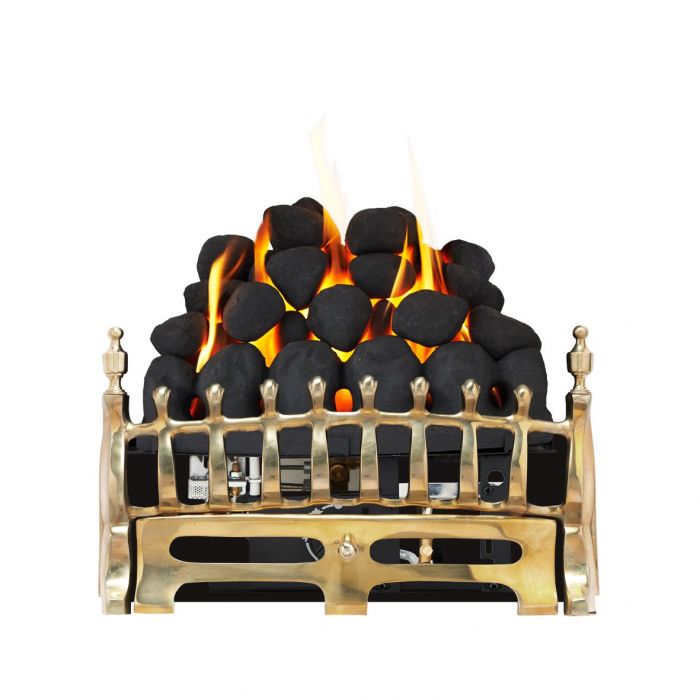

Sonora Blenheim DGF Gas Fire
- 2.4kW Heat Output (Gross)
- Taper Tray
Sonora DGF Inset Gas Fire
- Tapered inset gas tray
- Full depth fuel bed
- 2.4kW heat output (Gross)
- Ideal for Victorian Fireplaces converting from solid fuel
- OVERVIEW: Useful standalone tapered gas tray to be used with suitable fire backs or chair bricks
The Sonora is a full depth inset tapered burner tray designed to fit a standard chair brick (also commonly referred to as a fire back). Chair bricks are popular in older homes with a class 1 brick chimney, orginally used for burning solid fuel. The Sonora requires a min. 178mm / 7" pre-fabricated flue system or conventional brick chimney. It is classed as a Decorative Gas Fire (DGF) and is capable of providing up to 2.4kW heat output (Gross). The Sonora produces a lovely full depth flame picture however, as this is an open fronted fire placed within a chair brick (without a modern firebox).
The Sonora can be specified in Manual Control (Rotary) or Remote Control and is available with coal, pebble or log fuel bed.
The Blenheim fret is a classic traditional cast design with ornate vertical bars and delicate form. It features a bowed profile with two decorative finials and is designed to free stand in front of the fire. The Blenheim fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The ashpan is a separate component and provides access to the controls.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
|Heat Input Gross (High)||6.8kW|
|Heat Input Gross (Low)||3.5kW|
|Heat Output Gross (Low)||1.2kW|
|Heat Type||Radiant Heat|
|Chimney Flue Compatibility||Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)|
|Control Ignition||Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Remote Control)|
|Control Location||Low Level - Front - Behind Ash Pan (Manual - Rotary Control), Handset (Remote Control)|
|Air Vent Required||Not Required|
|Manufacturer Guarantee||3 Years|
|Safety Features||Flame & Oxygen Monitoring Device|
|Installation Requirement||Gas Safe Registered Installer (Bord Gais - ROI)|
|Installation Information||As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.|
|Fuel Type||Natural Gas|
|Fire Type||Open Fronted|
|Width Outline A||380mm|
|Height Outline B||300mm|
|Depth Outline C||240mm|
|Rear Width Min D1||240mm|
|Rear Width Max D2||360mm|
|Rear Height E||240mm|
|Opening Width Min X1||405mm|
|Opening Width Max X2||440mm|
|Opening Height Min Y1||565mm|
|Opening Height Max Y2||575mm|
|Opening Depth Min Z||220mm|
