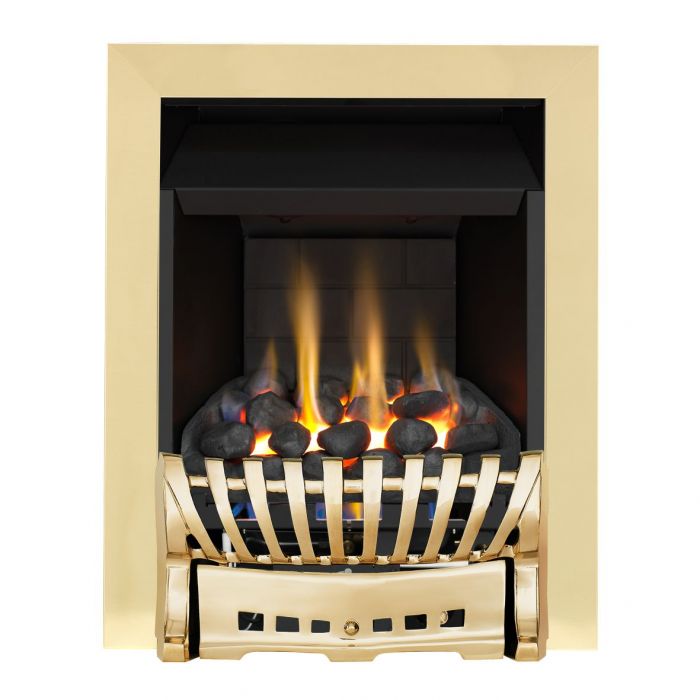

Asaba Elegance Slimline Gas Fire
- 4.1kW Heat Output (Gross)
- Open Fronted
Asaba Slimline Convector Inset Gas Fire
- Slimline design requires min. 125mm depth (+ 20mm debris collection)
- Fits almost any chimney or flue type (standard opening - excludes low lintel)
- Excellent heat output 4.1kW (Gross)
- Open fronted for increased realism
- OVERVIEW: Exceptional slimline gas fire with excellent heat and efficiency that is suitable for most homes
The Asaba is a slimline convector inset gas fire designed for homes with a shallow pre-cast flue, class 1 or class 2 pre-fabricated flue systems (min. 127mm or 5" diameter) or conventional class 1 brick chimney. The Asaba features a clever heat exchanger that provides convected heat in addition to standard radiant heat.
The Asaba's versatile slimline convector firebox fits a standard fireplace opening, normally 16" wide x 22" high (please refer to product specification). Thanks to its shallow installation depth of 125mm (plus 20mm debris collection) the Asaba is a very popular choice for modern homes seeking an open fronted gas fire where minimum depth and maximum heat is a priority.
The Asaba can be specified with coal or pebble effect fuel bed. It is available as Manual Control (Rotary), Manual (Fingerslide) or Remote Control. The Asaba is not available with any of our Timeless cast frames.
The Elegance fret is a traditional vertical cast design with a modern twist that imitates a classic solid fuel fire grate. It has a curved profile and is intended to stand in front of the fire and frame. The ashpan is a separate component and provides access to the controls (depending on the model). The Elegance fret is available in: brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The one-piece frame is held in position with magnets (supplied) and depending on the model is available in: brass effect, chrome effect or black.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
|Heat Input Gross (High)||6.2kW|
|Heat Input Gross (Low)||3.5kW|
|Heat Output Gross (High)||4.1kW|
|Heat Output Gross (Low)||2.3kW|
|Heat Type||Radiant & Convected Heat|
|Chimney Flue Compatibility||Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)|
|Control Ignition||Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control), Battery Spark Ignition (Remote Control)|
|Control Location||Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control), Handset (Remote Control)|
|Air Vent Required||Not Required|
|Manufacturer Guarantee||3 Years|
|Safety Features||Flame & Oxygen Monitoring Device|
|Installation Requirement||Gas Safe Registered Installer (Bord Gais - ROI)|
|Installation Information||As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.|
|Fuel Type||Natural Gas|
|Fire Type||Open Fronted|
|Engine Type||Slimline Convector|
|Width Outline A||480mm|
|Height Outline B||595mm|
|Depth Outline C||125mm|
|Rear Width Min D1||235mm|
|Rear Width Max D2||380mm|
|Rear Height E||545mm|
|Opening Width Min X1||380mm|
|Opening Width Max X2||450mm|
|Opening Height Min Y1||540mm|
|Opening Height Max Y2||575mm|
|Opening Depth Min Z||145mm|
