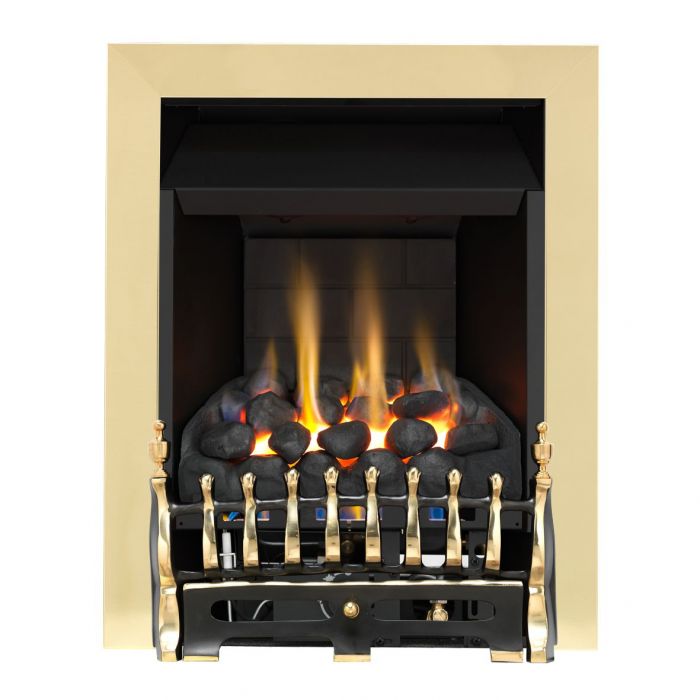

Asaba Blenheim Slimline Gas Fire
- 4.1kW Heat Output (Gross)
- Open Fronted
Asaba Slimline Convector Inset Gas Fire
- Slimline design requires min. 125mm depth (+ 20mm debris collection)
- Fits almost any chimney or flue type (standard opening - excludes low lintel)
- Excellent heat output 4.1kW (Gross)
- Open fronted for increased realism
- OVERVIEW: Exceptional slimline gas fire with excellent heat and efficiency that is suitable for most homes
The Asaba is a slimline convector inset gas fire designed for homes with a shallow pre-cast flue, class 1 or class 2 pre-fabricated flue systems (min. 127mm or 5" diameter) or conventional class 1 brick chimney. It features a slimline design with clever heat exchanger that provides convected heat in addition to standard radiant heat.
The Asaba's versatile slimline firebox fits a standard 16" (wide) x 22" (high) opening. Thanks to its shallow depth the Asaba only requires a fireplace depth of 125mm plus 20mm debris collection. This makes it a very popular choice where depth and heat output is a priority.
The Asaba can be specified with coal or pebble effect fuel bed. It is available as Manual Control (Rotary), Manual (Fingerslide) or Remote Control.
The Blenheim fret is a traditional cast design with ornate features. It has a very slightly bowed profile and two decorative finials. The Blenheim fret is available in; brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The ashpan is a separate component and provides access, if applicable, to the controls (model dependent). The one-piece frame is held in position with magnets (supplied) and depending on the model is available in; brass effect, chrome effect or black.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
|Heat Input Gross (High)||6.2kW|
|Heat Input Gross (Low)||3.5kW|
|Heat Output Gross (High)||4.1kW|
|Heat Output Gross (Low)||2.3kW|
|Heat Type||Radiant & Convected Heat|
|Chimney Flue Compatibility||Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater)|
|Control Ignition||Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control), Battery Spark Ignition (Remote Control)|
|Control Location||Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control), Handset (Remote Control)|
|Air Vent Required||Not Required|
|Manufacturer Guarantee||3 Years|
|Safety Features||Flame & Oxygen Monitoring Device|
|Installation Requirement||Gas Safe Registered Installer (Bord Gais - ROI)|
|Installation Information||As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.|
|Fuel Type||Natural Gas|
|Fire Type||Open Fronted|
|Engine Type||Slimline Convector|
|Width Outline A||480mm|
|Height Outline B||595mm|
|Depth Outline C||125mm|
|Rear Width Min D1||235mm|
|Rear Width Max D2||380mm|
|Rear Height E||545mm|
|Opening Width Min X1||380mm|
|Opening Width Max X2||450mm|
|Opening Height Min Y1||540mm|
|Opening Height Max Y2||575mm|
|Opening Depth Min Z||145mm|
