Asaba Blenheim Brass Slimline Gas Fire
Out of stock
Item No:
SF1-102-000
Gas Fire
This is a conventional open fronted gas fire which doesn’t require an vent as the heat input is less than 7.0kW. The gas fire is suitable for natural gas only and requires an 8mm pipe to supply the gas to the fire.
Pre-Cast Flue Chimney
This fire is compatible with a Pre-Cast Flue System. Pre-Cast Flue Chimneys are commonly found in more modern homes which have chimney constructed using a 127mm/5" (class 2), hollow concrete flue blocks. The blocks create a flue up through the property and usually have a ridge vent on the roof.
Class 2 - Pre-Fabricated Flue System
This fire is compatible with a Class 2 Pre-Fabricated Flue System with a minimum internal diameter of 5" (127mm) or greater.
Class 1 - Chimney / Flue System
This fire is compatible with a Class 1 conventional brick chimney or Pre-Fabricated Flue System with a minimum internal diameter of 7" (180mm) or greater.
Gas Safe Register
This fire must be installed and been serviced annually by a Gas Safe registered installer. For more information about Gas Safe please go to www.gassaferegister.co.uk
Remote Control
This fire is available in remote control.
This remote control system requires a permanent pilot meaning the pilot must be lit manually before the remote control is functional. The remote control can be used to control the operation of the fire from high to low.
NB: The valve is situated at the bottom of the fire behind the fret. The valve must be used to initally light the fire. It also acts as an override in the absence of the remote control handset.
Manual - Fingerslide Control
This fire is available in manual - fingerslide control. The fingerslide control allows you to operate the fire from LOW to HIGH and turn the fire ON/OFF. A battery is required. On our inset fires the fingerslide control is located on the top right hand side of the fire so that you don't have to bend down on your hands and knees to control the fire.
Guarantee (3 Years)
This product has a 3 year manufacture guarantee. Please see the terms and conditions of your gurantee in the gurantee section.
Radiant Heat
This fire is a radiant gas fire.The heat moves radiates out away from the fire out into the room, the closer you get to the fire the warmer you will get.
Convected Heat
This is fire benefits from convected heat. The convector fire incorporates a cleverly designed heat exchanger that provides draws cold air from the room and turns this into warm air. The cold air passes through the heat exchanger and this turns this cold air into warm air which helps heat your room at no extra running cost.
Manual - Rotary Control
This fire is available in manual - rotary control. It incorporates a piezo spark ignition which doesn't require a battery and allows you to operate the fire from LOW to HIGH and turn the fire ON/OFF. The rotary control is located at the bottom of the fire, behind the decorative fret (ashpan).
3-5 Days Delivery
Pat. Tatem nit alis niamet wis do core dit eum nos nullupt atinibh ea facidunt in exer ing exercin verit praesse quametummy numsandit am, sum dolenibh ese dolore elit, verit praessisim at praessed tissectet lumsan ullutpat wisl et, se facinis dolore molore dolorperatue faciliquat vulputpat aciduisl estrud euguer alit non vero exer se tionsequisi blan exerosto eu facipisim quipis dolore moloborem quat, conum.
- 4.1kW Heat Output (Gross)
- Open Fronted
Extras
-
Extended Guarantee (3YR to 5YR)- Extended Guarantee (3 Year to 5 Year)
- Peace of mind against expensive repair bills
- Quality approved and reliable repair
- Protection for your new fire/s for up to 5 years
- Includes genuine Superior Fires parts
- Approved Gas Safe engineer
£50.00
Asaba Slimline Convector Inset Gas Fire
- Slimline design requires min. 125mm depth (+ 20mm debris collection)
- Fits almost any chimney or flue type (standard opening - excludes low lintel)
- Excellent heat output 4.1kW (Gross)
- Open fronted for increased realism
- OVERVIEW: Exceptional slimline gas fire with excellent heat and efficiency that is suitable for most homes
The Asaba is a slimline convector inset gas fire designed for homes with a shallow pre-cast flue, class 1 or class 2 pre-fabricated flue systems (min. 127mm or 5" diameter) or conventional class 1 brick chimney. It features a slimline design with clever heat exchanger that provides convected heat in addition to standard radiant heat.
The Asaba's versatile slimline firebox fits a standard 16" (wide) x 22" (high) opening. Thanks to its shallow depth the Asaba only requires a fireplace depth of 125mm plus 20mm debris collection. This makes it a very popular choice where depth and heat output is a priority.
The Asaba can be specified with coal or pebble effect fuel bed. It is available as Manual Control (Rotary), Manual (Fingerslide) or Remote Control.

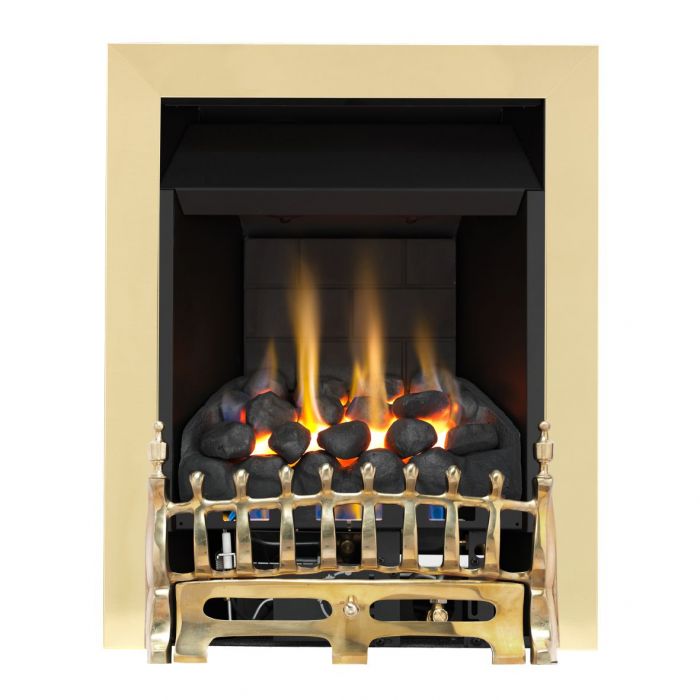

The Blenheim fret is a traditional cast design with ornate features. It has a very slightly bowed profile and two decorative finials. The Blenheim fret is available in; brass (solid brass), brass & black (solid brass), chrome (chrome plated brass), chrome & black (lightweight aluminium), black (lightweight aluminium). The ashpan is a separate component and provides access, if applicable, to the controls (model dependent). The one-piece frame is held in position with magnets (supplied) and depending on the model is available in; brass effect, chrome effect or black.
Please note the price is dependent upon the final configuration. Natural gas only.
This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine the actual chimney or flue specification.
| Heat Input Gross (High) | 6.2kW |
|---|---|
| Heat Input Gross (Low) | 3.5kW |
| Heat Output Gross (High) | 4.1kW |
| Heat Output Gross (Low) | 2.3kW |
| Heat Type | Radiant & Convected Heat |
| Chimney Flue Compatibility | Pre-Cast (Minimum Size 12,500mm²), Pre-Fabricated - Class 2 (127mm/5" Diameter), Pre-Fabricated - Class 1 (178mm/7" Diameter or Greater), Conventional Chimney - Class 1 (178mm/7" Diameter or Greater) |
| Control Ignition | Battery-Free Piezo Spark Ignition (Manual - Rotary Control), Battery Spark Ignition (Manual - Fingerslide Control), Battery Spark Ignition (Remote Control) |
| Control Location | Low Level - Front - Behind Ash Pan (Manual - Rotary Control), High Level - Right - Side (Manual - Fingerslide Control), Handset (Remote Control) |
| Air Vent Required | Not Required |
| Manufacturer Guarantee | 3 Years |
| Safety Features | Flame & Oxygen Monitoring Device |
| Installation Requirement | Gas Safe Registered Installer (Bord Gais - ROI) |
| Installation Information | As with any open fire, a fire guard complying with BS 8423 must be used. Fire guards are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particularly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable materials coming into contact with, or in proximity to, burning fuel and/or hot surfaces. |
| Fuel Type | Natural Gas |
| Fire Type | Open Fronted |
| Installation Type | Inset |
| Engine Type | Slimline Convector |
| Width Outline A | 480mm |
| Height Outline B | 595mm |
| Depth Outline C | 125mm |
| Rear Width Min D1 | 235mm |
| Rear Width Max D2 | 380mm |
| Rear Height E | 545mm |
| Opening Width Min X1 | 380mm |
| Opening Width Max X2 | 450mm |
| Opening Height Min Y1 | 540mm |
| Opening Height Max Y2 | 575mm |
| Opening Depth Min Z | 145mm |
| Packaging Width | 575mm |
| Packaging Height | 670mm |
| Packaging Depth | 360mm |
| Packaging Weight | 16.5kg |
| Rebate Depth | 125mm |
