Air Vent Core 100

Share
Item no: SF99-001-001
£38.00

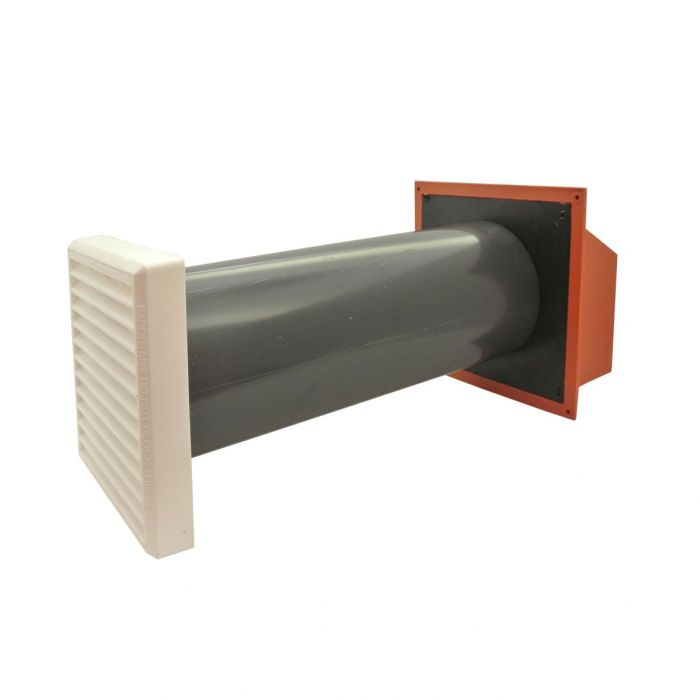

Air Vent Core 100

Click to enlarge

Air Vent Core 100 Share
Item no: SF99-001-001
£38.00

Guarantee (1 Year)

This product has a 1 year manufacture guarantee. Please see the terms and conditions of your gurantee in the gurantee section.

  • 100cm² Ventilation
  • Approved For Superior Fires Flueless Fires
  • Easy Installation - 5" Core Drill
  • BUY DIRECT

    We design, manufacture and sell in the UK

  • BEST PRICE GUARANTEE

    We can't and won't be beaten on price!

  • FREE DELIVERY

    To UK Mainland orders over £249

  • 45-DAY RETURNS

    Don't like it? Send it back! Simple

Air Vent Core 100

  • 100cm² Ventilation
  • For flueless gas fires and stoves
  • Dims (mm): Internal fascia (white): w165 x h165, External cowl (terracotta): w202 x h190, CSA: w125 Ø (mm), Length:300-380 (mm)
  • Draught resistant cowl
  • 50mm long spigot and large flanges for 'Easyfit '
  • Removable internal inspection/direction louvre
  • OVERVIEW: Easy install - 5" core drill air vent

The purpose of an air vent is to protect from rain, vermin etc. entering while allowing a measured amount of air to enter for combustion purposes. All flueless gas fires and stoves require a minimum ventilation of 100cm². There are certain conditions to the location and position of the air vent listed below.

Installation Information:

  • A minimum of 100 cm² purpose provided ventilation MUST be provided for this appliance.
  • An openable window or equivalent is also required in the room.
  • Any ventilation fitted must comply with local Codes and/or Regulations. Ventilation fitted under, or within immediate vicinity of the appliance must not be used as it may adversely effect performance of the combustion monitoring system (Oxygen Depletion Sensor - ODS).
  • The appliance shall not be installed within one metre of any existing air vent, and any new air vent shall not be installed within one metre of the appliance. WARNING: Ventilation openings must never be blocked or restricted in any way.
  • Internal vents in an internal wall, other than appliances compartment wall, must be sited no more than 450mm above the floor level in order to reduce the spread of smoke in the event of fire.
  • Air vents should not be sited where likely to become blocked or flooded, or where contaminated air may be present at any time. Location should be such that air currents do not normally pass through normally occupied areas.
  • The air vent used to ventilate the OLD FLUE must not be sited within 500mm of this appliance.
  • The free area reducer disk should not be used as this reduces the free area to below 100cm².
  • The requirements of any other gas, oil or solid fuel appliances operating in the same room or space must be taken into consideration when assessing ventilation.
  • Any ventilation fitted must comply with BS5871 Pt 4 and BS5440 Pt 2:2000 for draught reducing vents. For Republic of Ireland refer to the current edition of IS813 and any relevant rules in force.

This information is intended for guidance only. Superior Fires recommends booking a Home Survey to determine whether this appliance is compatible with your requirements.

Manufacturer Guarantee1 Year
Installation InformationAny ventilation fitted must comply with BS5871 Pt 4 and BS5440 Pt 2:2000 for draught reducing vents. For Republic of Ireland refer to the current edition of IS813 and any relevant rules in force.
Exterior ColourTerracotta
External DesignCowl
Internal ColourWhite
Internal DesignLouvre
Ventilation100cm²
Width Outline A165mm
Height Outline B165mm
External Width D202mm
External Height E190mm
External Depth F82mm
Packaging Width215mm
Packaging Height200mm
Packaging Depth430mm
Packaging Weight1.0Kg
Vent CSAØ127mm (5")
Length Min L250mm
Length Max L300mm
